24000 BTU 16.5 SEER2 Central Ducted Air Conditioner Heat Pump System

Sale!

24000 BTU 16.5 SEER2 Central Ducted Air Conditioner Heat Pump System

ENERGY STAR certified.
 WARNING: This product can expose you to chemicals including refrigerants, which are known to the State of California to cause cancer [or birth defects or reproductive harm]. For more information, go to www.P65Warnings.ca.gov. ================================
15 people are viewing this product right now.   ================================

Original price was: $3,740.00.Current price is: $2,898.00.

You save: $842.00 (23%)

The Pioneer® 24,000 BTU 16.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System is an advanced second-generation unit that provides outstanding cooling and heating efficiency. With a capacity of 24,000 BTUs and a SEER2 rating of 16.5, this system delivers high performance for effectively regulating indoor temperatures while reducing energy consumption.

Description

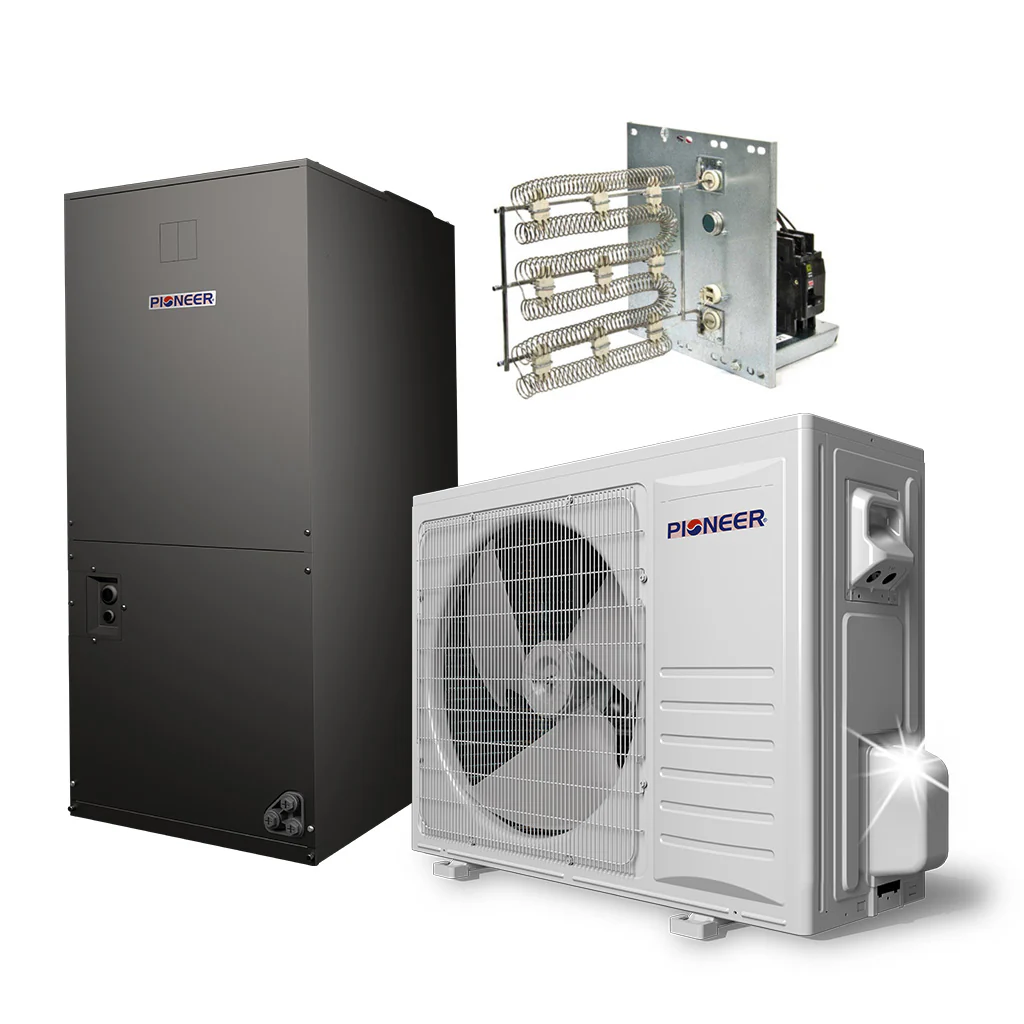

Pioneer® 24,000 BTU 16.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

What’s Included

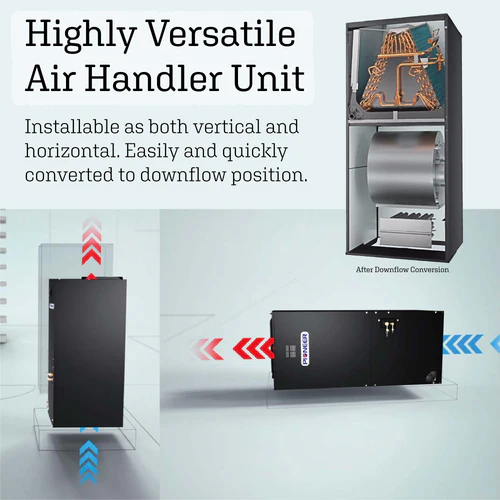

  • Indoor Unit (Downflow-capable)
  • Outdoor Unit (Side-Discharge)
  • Electric Strip Heater (5 kW w/ breaker)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5-year parts limited warranty
  • 5 years compressor limited warranty

Certifications

Pioneer Mini Split Certifications

Features

**Ultra-Flexible Lineset Routing**

When connecting the outdoor condenser to the indoor air handler, Pioneer’s DYR series provides exceptional flexibility, accommodating a height difference of up to 98 feet and total line lengths of 164 feet for the 24K model and 246 feet for the 36K model and larger.





Achieve More Consistent Room Temperatures

With a powerful static pressure output of up to 0.8 inches w.c., this system efficiently circulates air to minimize temperature fluctuations throughout your home.





Compact Side-Discharge Condenser

Utilize a modern outdoor unit design that saves floor space and offers better protection against harsh weather than conventional top-discharge units.





Better Comfort, Better Efficiency

The DYR series features a twin rotary-type compressor that can adjust the output level between 25% and 110%, ensuring perfect heating and cooling for your home while drawing minimal energy. This technology is also integrated into the system’s computer board to assist in capacity adjustment and maintain your home at your desired temperature without fluctuations.

**Low-Ambient Heating**

Pioneer’s DYR series is ideal for year-round climate control in your home. It provides continuous heat pump heating even in outdoor temperatures as low as -13°F. The condenser features a built-in drain pan heater, and the air handler comes with an optional 5 or 10-kW strip heater for supplemental heating. The 24K, 36K and 48K BTU options have even received the prestigious Energy Star™ Cold-Climate certification.





**Extreme-Weather Cooling**

Hot weather doesn’t stand a chance against this powerful machine. It operates at full capacity in temperatures up to 122°F, so you can rest assured that your system will keep up with the heat. Additionally, it can effectively cool environments even in below-freezing temperatures, making it ideal for specialized applications.

Additional Information

Weight 280 lbs

Product FAQ

Program – Residential Federal Tax Credit – Air Source Heat Pump
Heat pumps are either ducted or non-ducted (mini-splits).  Eligibility depends on whether you live in the north or south. Ducted South: All heat pumps that have earned the ENERGY STAR label North: Heat pumps designated as ENERGY STAR Cold Climate that have an EER2 > 10 Ductless (mini-splits) South: ENERGY STAR-certified heat pumps with
  • SEER2 > 16
  • EER2 > 12
  • HSPF2 > 9
North: ENERGY STAR Cold Climate heat pumps with
  • SEER2 16
  • EER2 9
  • HSPF2 > 9.5
Note: The information provided here about Air-Source heat pumps that are eligible for the tax credit is the most current available. Currently, eligible equipment must “meet or exceed the highest efficiency tier (not including any advanced tier) established by the Consortium for Energy Efficiency which is in effect as of the beginning of the calendar year.”  The eligibility requirements are subject to change based on the final CEE Criteria and the Internal Revenue Service (IRS).

Annual Limits on Energy-Efficient Home Improvement Tax Credits

In addition to limits on the amount of credit you can claim for any particular equipment installation or home improvement, there are annual aggregate limits.  The overall total limit for an efficiency tax credit in one year is $3,200.  This breaks down to a total limit of $1,200 for any combination of home envelope improvements (windows/doors/skylights, insulation, electrical) plus furnaces, boilers, and central air conditioners.  Any combination of heat pumps, heat pump water heaters, and biomass stoves/boilers are subject to an annual total limit of $2,000. (Note: ENERGY STAR-certified geothermal heat pumps are eligible for a separate tax credit and not counted against these limits.)

Reviews

There are no reviews yet.

Be the first to review “24000 BTU 16.5 SEER2 Central Ducted Air Conditioner Heat Pump System”

Your email address will not be published. Required fields are marked *

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Max Cooling Rated Capacity (Min~Max): 22,000 (7,200~26,000) BTU/h
  • Cooling SEER2: 16.5 BTU/W.h
  • Cooling EER2: 10.1 BTU/W.h
  • Max Heating Rated Capacity (Min~Max): 26,000 (8,900 ~ 26,000) BTU/h
  • Heating HSPF2 (Region IV): 9.0 BTU/w
  • Heating C.O.P.2 (47°F/5°F): 3.4 / 2.16 W/W
  • Refrigerant Type: R-410a
  • Suitable Area: 800 Sq.F
  • Operating Temperatures: (-13°F – 75°F/Heating)/(5° – 122°F/Cooling)

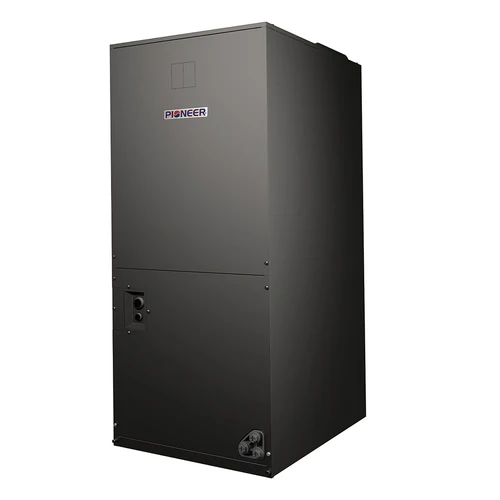

Indoor Unit Data

  • Model: DR024GHFD18HT2
  • Air Flow: 800 CFM
  • Sound Level: 55 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 19-5/8 × 21-5/8 x 46-1/8 Inches
  • Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
  • Net / Gross Weight: 136 / 159 Lbs

Outdoor Unit Data

  • Model: YH1824GHFD18R2
  • Sound Level: 54 dB(A)
  • Metering Device: EXV
  • Net Dimensions (WDH): 33-7/8 × 12-1/4 × 26-3/8 Inches
  • Carton Dimensions (WDH): 39 × 17-3/4 × 28-3/4 Inches
  • Net / Gross Weight: 112 / 121 Lbs
