MRCOOL DIY 24K BTU Heat Pump Condenser 230 volt

ENERGY STAR certified.
 WARNING: This product can expose you to chemicals including refrigerants, which are known to the State of California to cause cancer [or birth defects or reproductive harm]. For more information, go to www.P65Warnings.ca.gov. ================================
8 people are viewing this product right now.   ================================

Original price was: $1,814.66.Current price is: $1,678.00.

You save: $136.66 (8%)
MRCOOLMRCOOL
The DIY 4th Generation E Star 24K BTU Heat Pump Condenser operates at 230 volts and has a 20.5 SEER rating, accompanied by a 25-foot line set for convenient installation. This energy-efficient unit is designed for easy DIY setup, ensuring optimal performance and reliability.
______________________________________________ #1 in Newest Products
SKU: 4496 Categories: , Tags: , ,

Description

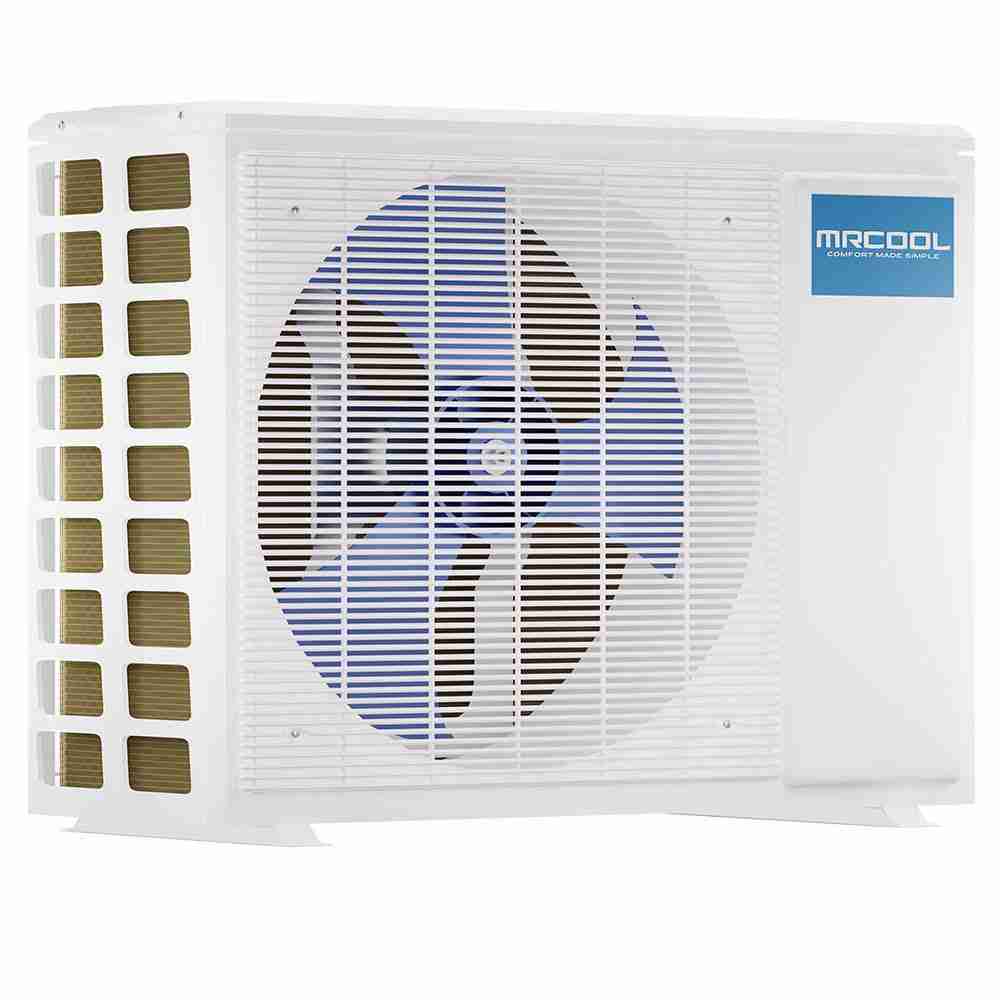

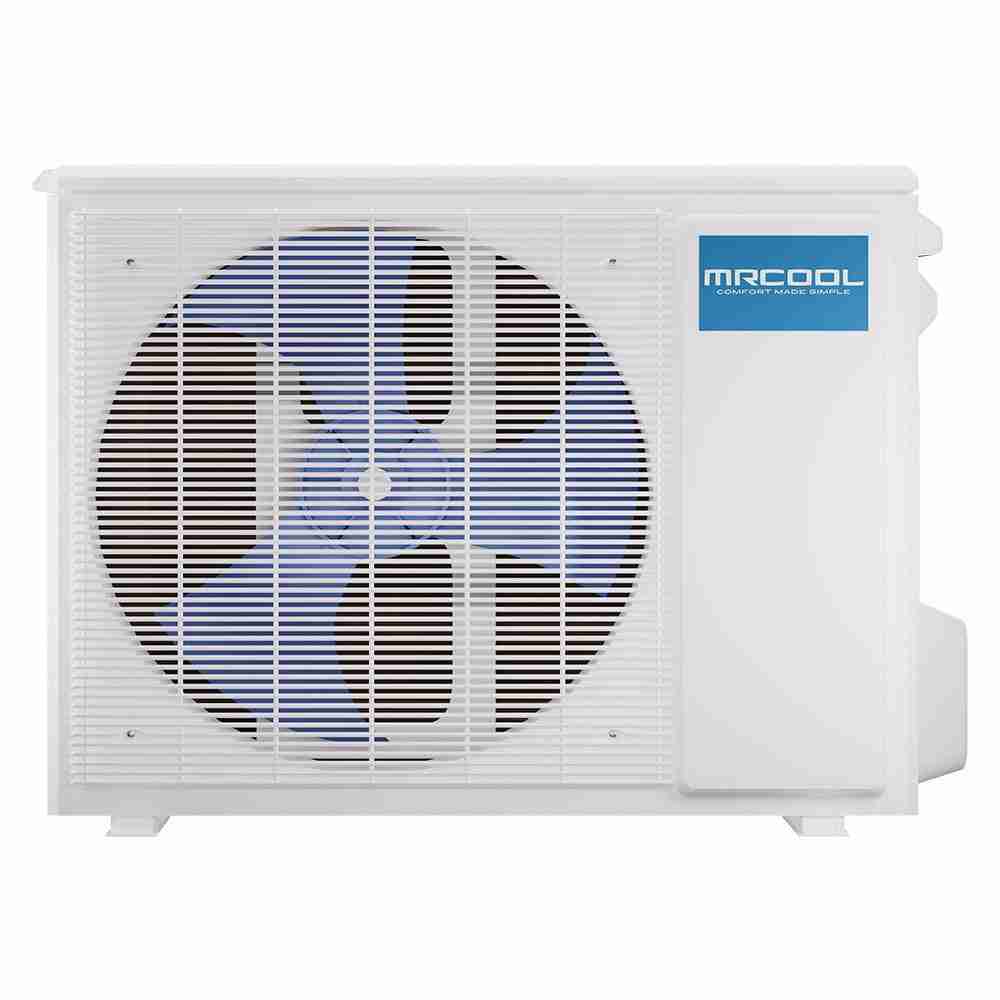

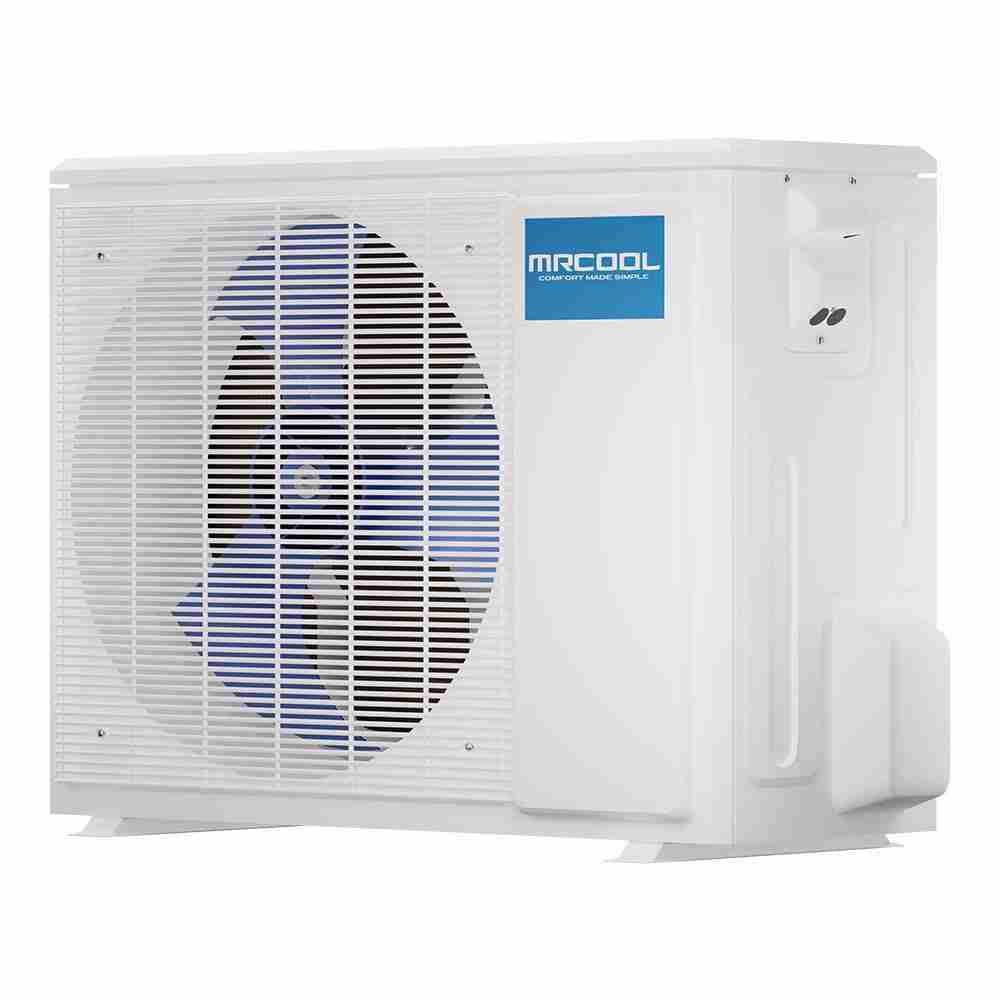

DIY 4th Generation E Star 24K BTU Heat Pump Condenser 230 volt 20.5 SEER with 25-foot line set

The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all-in-one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser.

All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, but it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP.

The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

    • Up to 20.5 SEER2
    • Gold Fin® condenser: corrosion-resistant coastal living – don`t worry, our condenser is built to resist long-term corrosion
    • Variable-speed DC inverter compressor technology cuts operating costs
    • R-410A environmentally friendly refrigerant
    • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty



Additional Information

Weight 125.22 lbs

Product FAQ

Program – Residential Federal Tax Credit – Air Source Heat Pump
Heat pumps are either ducted or non-ducted (mini-splits).  Eligibility depends on whether you live in the north or south. Ducted South: All heat pumps that have earned the ENERGY STAR label North: Heat pumps designated as ENERGY STAR Cold Climate that have an EER2 > 10 Ductless (mini-splits) South: ENERGY STAR-certified heat pumps with
  • SEER2 > 16
  • EER2 > 12
  • HSPF2 > 9
North: ENERGY STAR Cold Climate heat pumps with
  • SEER2 > 16
  • EER2 > 9
  • HSPF2 > 9.5
Note: The information provided here about Air-Source heat pumps that are eligible for the tax credit is the most current available. Currently, eligible equipment must “meet or exceed the highest efficiency tier (not including any advanced tier) established by the Consortium for Energy Efficiency which is in effect as of the beginning of the calendar year.”  The eligibility requirements are subject to change based on the final CEE Criteria and the Internal Revenue Service (IRS).

Annual Limits on Energy-Efficient Home Improvement Tax Credits

In addition to limits on the amount of credit you can claim for any particular equipment installation or home improvement, there are annual aggregate limits.  The overall total limit for an efficiency tax credit in one year is $3,200.  This breaks down to a total limit of $1,200 for any combination of home envelope improvements (windows/doors/skylights, insulation, electrical) plus furnaces, boilers, and central air conditioners.  Any combination of heat pumps, heat pump water heaters, and biomass stoves/boilers are subject to an annual total limit of $2,000. (Note: ENERGY STAR-certified geothermal heat pumps are eligible for a separate tax credit and not counted against these limits.)

Leave a Reply

Your email address will not be published. Required fields are marked *

  • Rating

PROS

+
Add Pros

Cons

+
Add Cons
Choose Image

MRCOOL 4th Generation DIY Warranty

MrCool distributor (hereinafter “Company”) warrants this product against failure due to defects in materials or workmanship under normal use and maintenance
as follows. All warranty periods begin on the date of the original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120)
days from the date of manufacture. The unit comes standard with a 5-year parts/7 year compressor warranty and is available with a limited lifetime compressor warranty
only if certain conditions/requirements are met.
The limited lifetime compressor warranty & the 7-year unit replacement warranty cover the unit ONLY in the event of compressor failure. To qualify for the
limited lifetime compressor warranty, the unit must be registered at the web address below within 60 days of the installation date, and the original,
the registered owner must also enroll in the MrCool Care program within 4 months from the installation date, which has a biannual fee to be covered by the
owner. The MrCool Care program is designed to provide the owner with a Do-It-Yourself cleaning kit to service/clean the unit at regular intervals (bi-annually) as
preventative maintenance to help ensure the unit will continue to function properly throughout its lifespan.
If compressor failure occurs within the first 7 years, and it has been verified with diagnostic testing performed by a certified HVAC technician (and proof can be
provided to MrCool), as well as meeting the other stipulations/requirements listed below, this warranty will provide one entire unit replacement (equipment only).
In the event of compressor failure after the initial 7 years, the limited lifetime compressor warranty will cover the cost of a replacement compressor (equipment only).
This warranty does not cover any costs incurred to diagnose or replace equipment. If the original owner does not register the unit, the warranty defaults to the
standard 5-year parts, 7-year compressor warranty.
To qualify for the Limited Lifetime Compressor Warranty, the product must be registered by the original owner and they must be enrolled in the
MrCool Care program at the following web address:
Product Registration: https://mrcool.com/warranty/

Read Document: mc-diy-4-wr-en-01

SEER 20.5
SEER2 20.5
EER 12.5
EER2 12.5
COP 47 3.15
HSPF hspf4/hspf5 : 10.5/9
HSPF2 hspf2-4/hspf2-5 : 9.2/7.1
CFM 605.88/505.88/364.71
TONNAGE 2
COOLING CAPACITY 23000BTU
HEATING CAPACITY 25000 BTU
VOLTAGE 208-230 V
PHASE 1
CYCLE 60 Hz
MAX FUSE BREAKER 35 A
MIN CIRCUIT AMPACITY 22 A
COLOR White
COLOR FAMILY White
RATED LOAD 0.45 A
MAX COVERAGE AREA Up to 1000 sqft
ZONE CAPACITY 1
REFRIGERANT TYPE R-410A
REFRIGERANT VOLUME 81.13 oz
DECIBEL RATING 48.5/43.5/33
DECIBEL RATING LOW 33 dBA
DECIBEL RATING HIGH 48.5 dBA
OSCILLATION 4-W
INVERTER Yes
MIN AMBIENT COOL -13F – 122F
MIN AMBIENT HEAT -13F – 75F
LINE SET LENGTH 25ft
MAX LINESET LENGTH 98.42 ft
LIQUID LINE SIZE 3/8 in
SUCTION LINE SIZE 5/8 in
COMPRESSOR MOTOR TYPE Twin-Rotary
CONDENSER FAN MOTOR RPM 850/750/700
BLOWER MOTOR RPM 1200/1000/700
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Limited Lifetime Compressor
BASE WARRANTY 5-year Parts/7-year Compressor
BASE PARTS WARRANTY 5-year Parts
REGISTERED COMPRESSOR WARRANTY Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY 7-year Compressor
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
RESTRICTED STATES GU;PR;VI
CONDENSER DEPTH 16.14 in
CONDENSER HEIGHT 31.89 in
CONDENSER WIDTH 37.24 in
CONDENSER WEIGHT 125.22 lbs
