Description

The GeoCool® all DC Inverter Technology is an excellent choice for those who value comfort and energy efficiency in their air conditioning systems. Thanks to its high-precision Electronic Expansion Valve, this technology allows for more accurate temperature control while keeping the utility bill down.

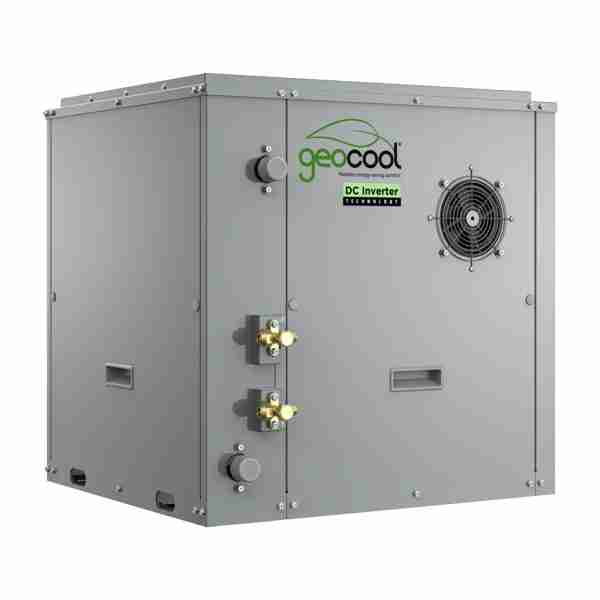

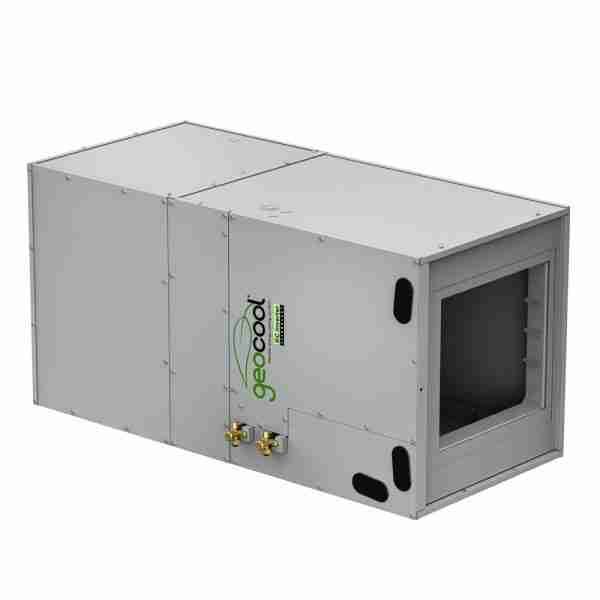

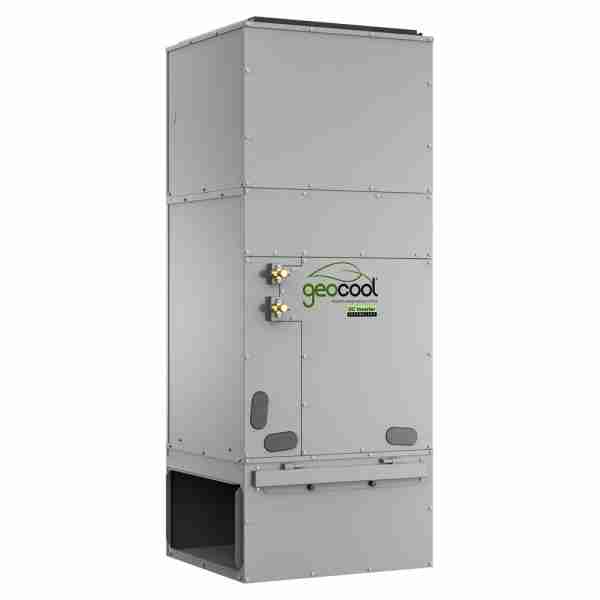

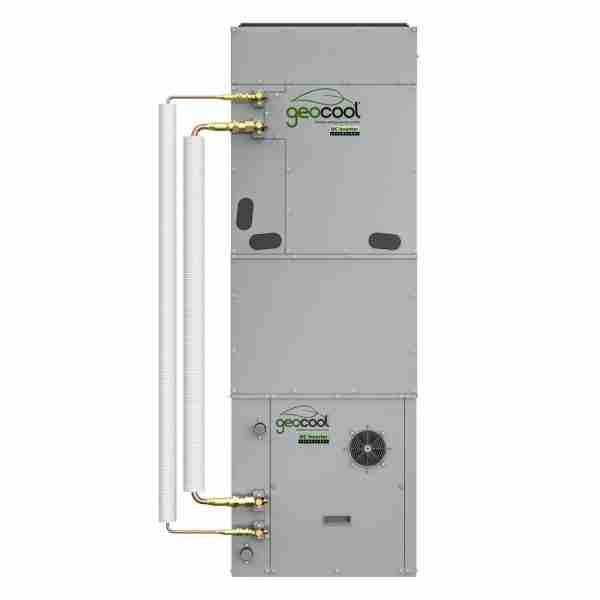

The GeoCool® Inverter Series Geothermal unit is equipped with four independent modules, providing the flexibility to meet different air outlet methods and applications. This feature makes it easier to customize the layout of the system according to specific space requirements. Even in tight spaces, a custom-built layout can be designed to fit the needs of the user.

If you’re looking for a long-term and low-maintenance solution, the GeoCool® Inverter Series Geothermal unit is a great choice. By designing your system, you can optimize the efficiency of your air conditioning and reduce your energy bills, all while enjoying a comfortable indoor environment.

• Up to 70 EER
• DC Inverter technology
• Closed loop – Full load – Cooling Current Input: 13 Heating Current Input: 17 || Open Loop- Full Load – Cooling Current Input: 10 Heating Current Input: 17
• Open loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
• Closed loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
• Cooling Operating Range: Inlet: 44.6F – 107.6F || Ambient: 50F – 100.4F || Return Air: 60.8F – 89.6F
• Heating Operating Range: Inlet 21.2F – 89.6F || Ambient: 39.2F – 84.2F || Return Air: 50F – 80.6F
• Open loop – Full load – EER: 27.02 COP: 4.2 || Open Loop- Part Load – EER: 70.97 COP: 6.2
• Closed loop – Full load – EER: 18.29 COP: 3.4 || Closed Loop- Part Load – EER: 48.79 COP: 5.1
• Full Fluid Flow (GPM): 7.93 || Partial Fluid Flow (GPM): 7.93
• Open loop – Full load – Cooling Capacity: 50500 BTU Heating Capacity: 48000 BTU || Open Loop- Part Load – Cooling Capacity: 13300 BTU Heating Capacity: 11000 BTU
• Closed loop – Full load – Cool
