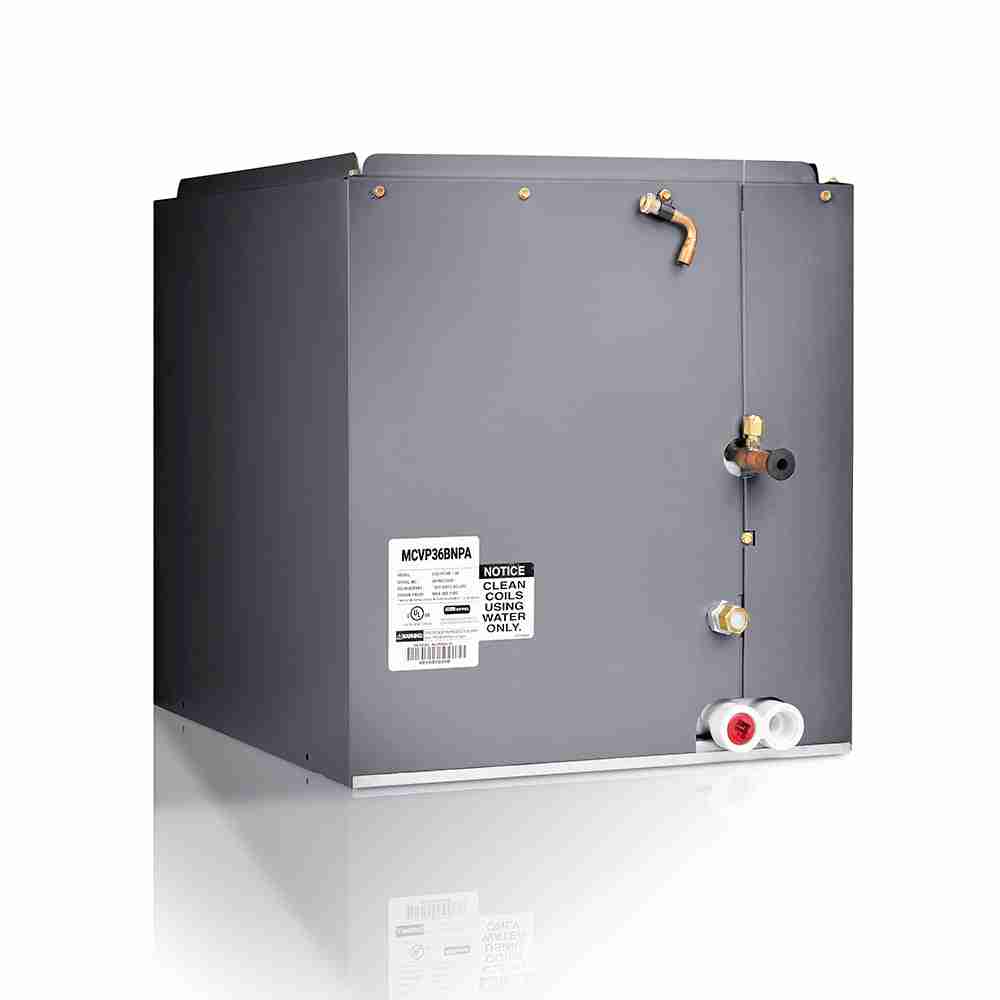

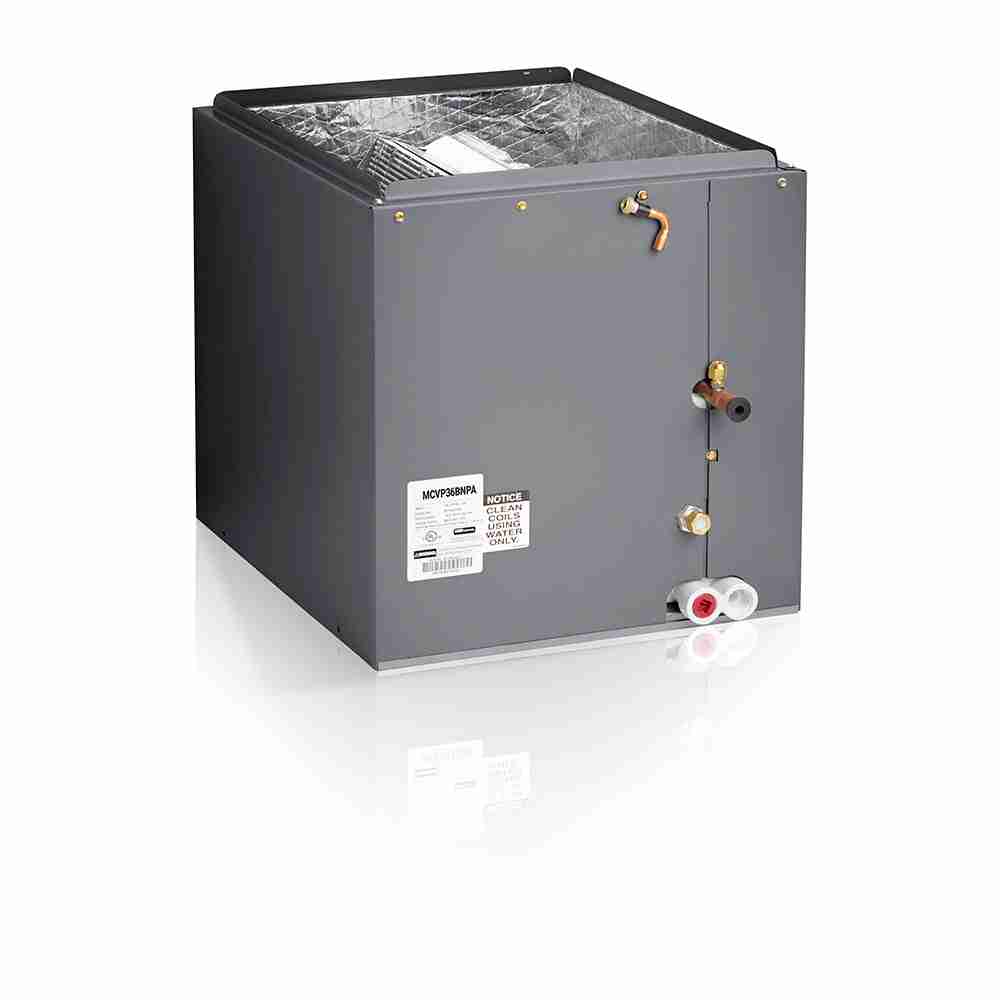

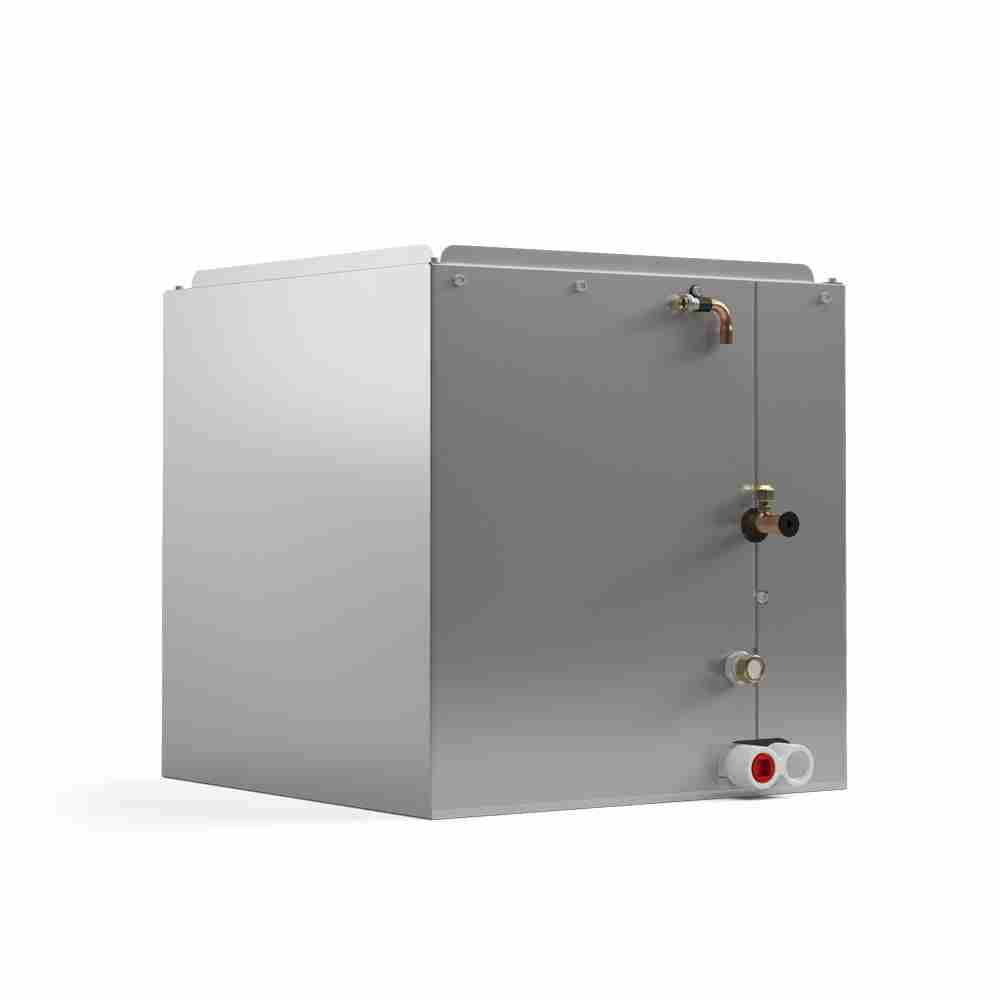

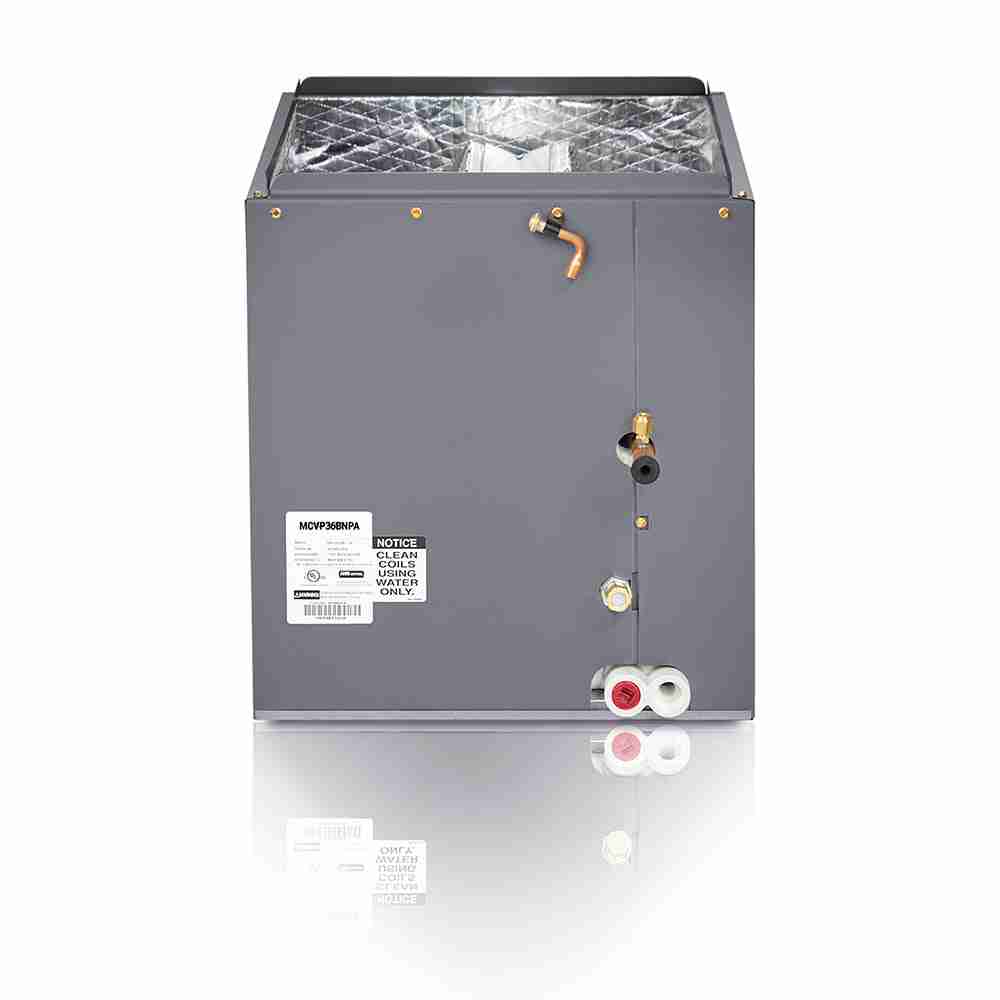

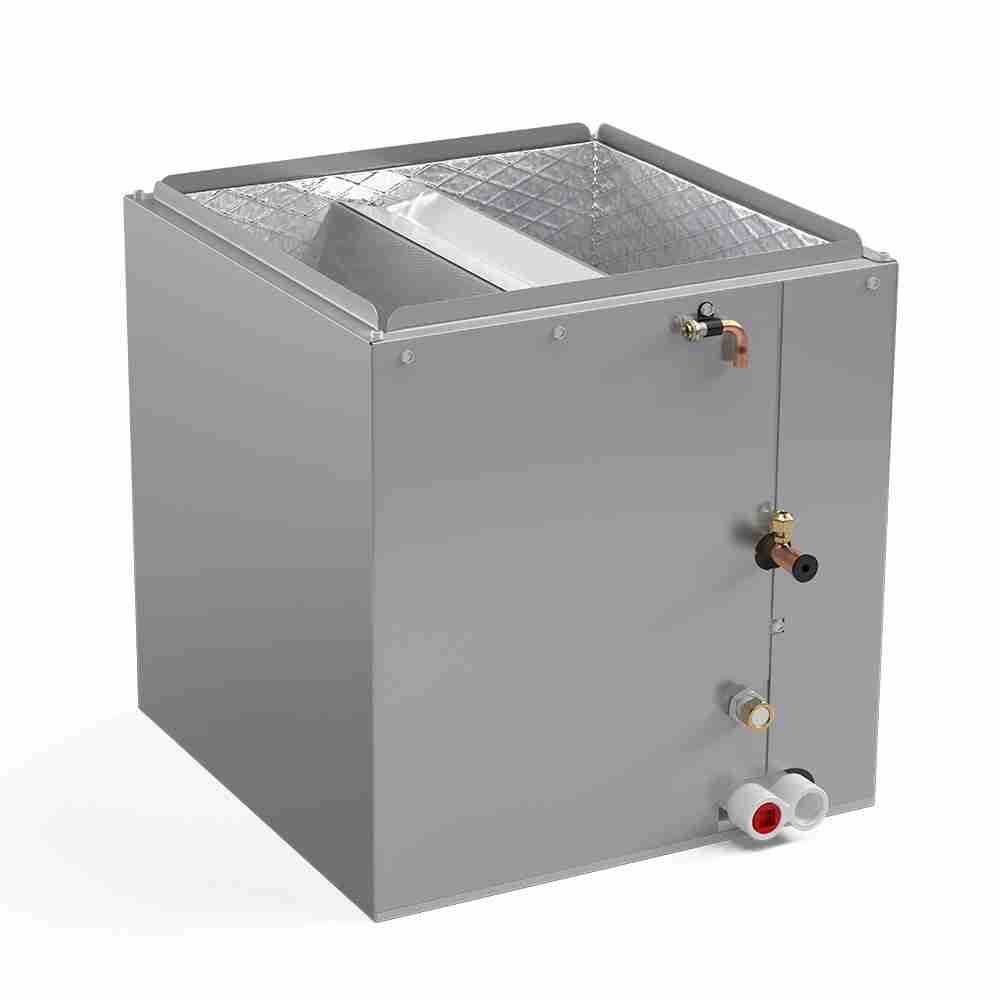

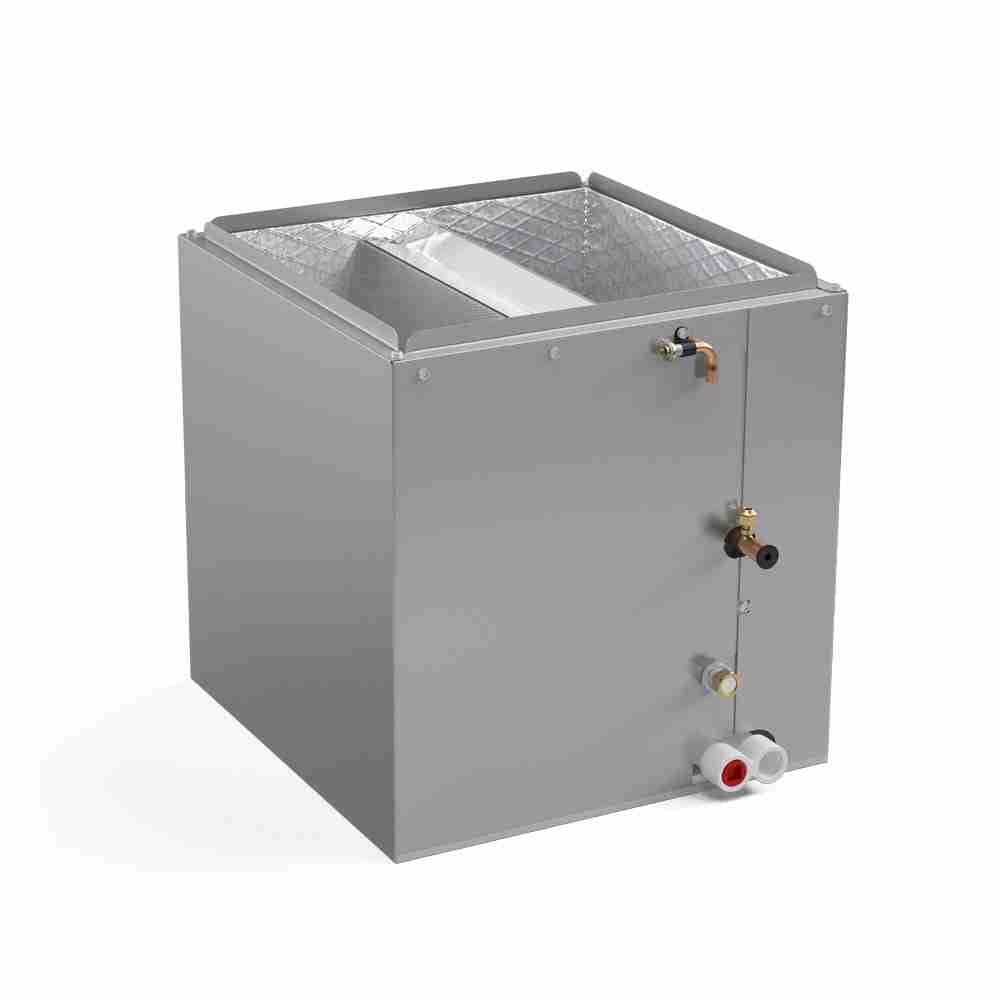

MRCOOL R410A 36,000 BTU Upflow Painted 17.5″ Evaporator Coil

1 people are viewing this product right now.

Original price was: $548.31.Current price is: $514.00.

You save: $34.31 (6%)
Compare
SKU: 4567 Category:

Description

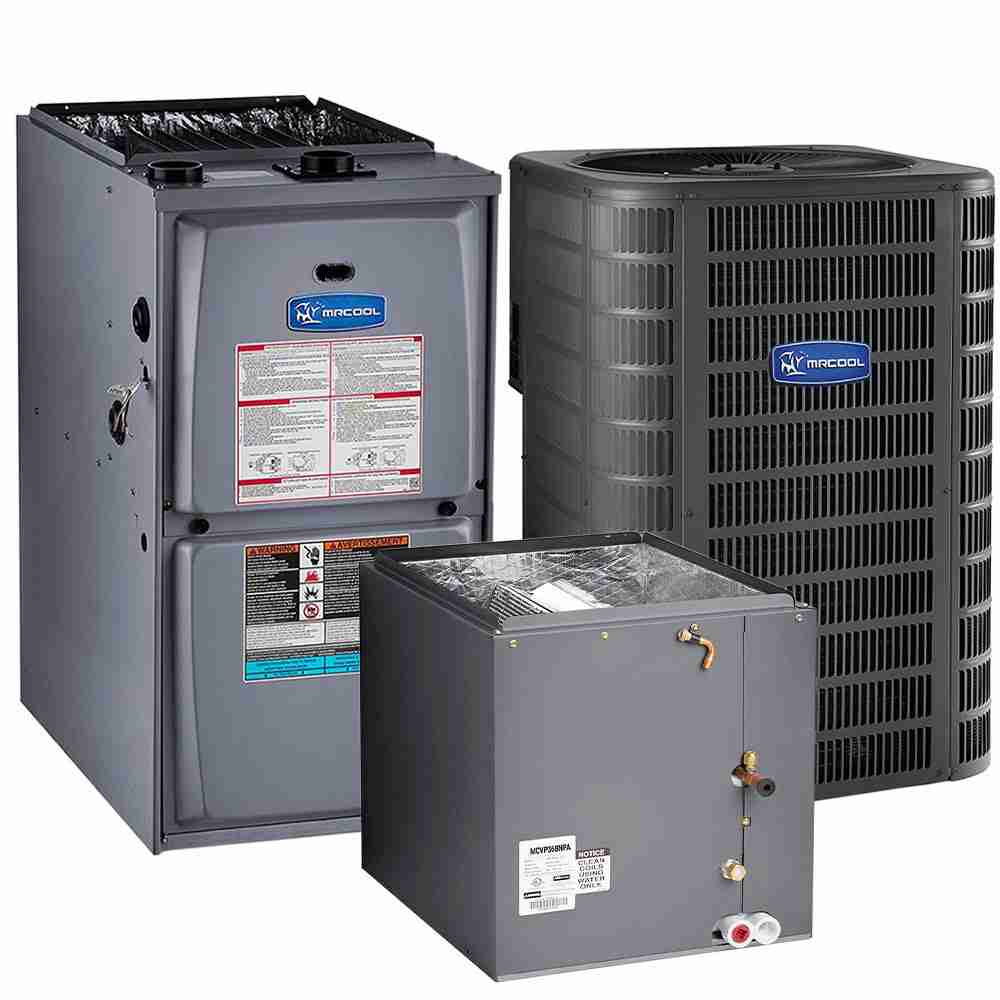

This is a brand new 3-ton, R410A refrigerant, Upflow cased Evaporator Coil. This efficient and durable coil is the solution for heat pumps and air conditioners for fast, flexible application. This Signature Series coil, when appropriately paired with a MRCOOL Signature Series condenser and gas furnace or modular blower, can achieve efficiency ratings of up to 16 SEER.

  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • All units UL Listed and AHRI Certified
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • External cabinet-mounted distributor body designed for easy changing of orifice sizes and fast TXV connections

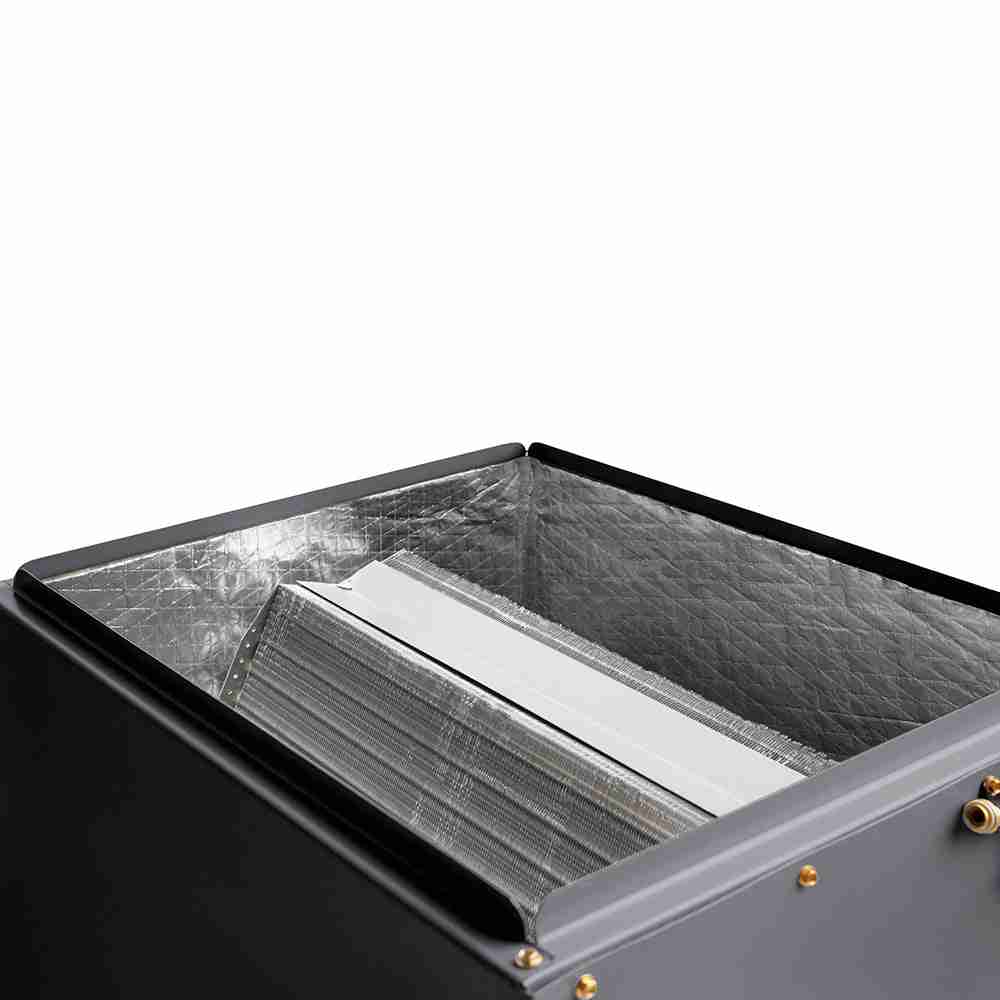

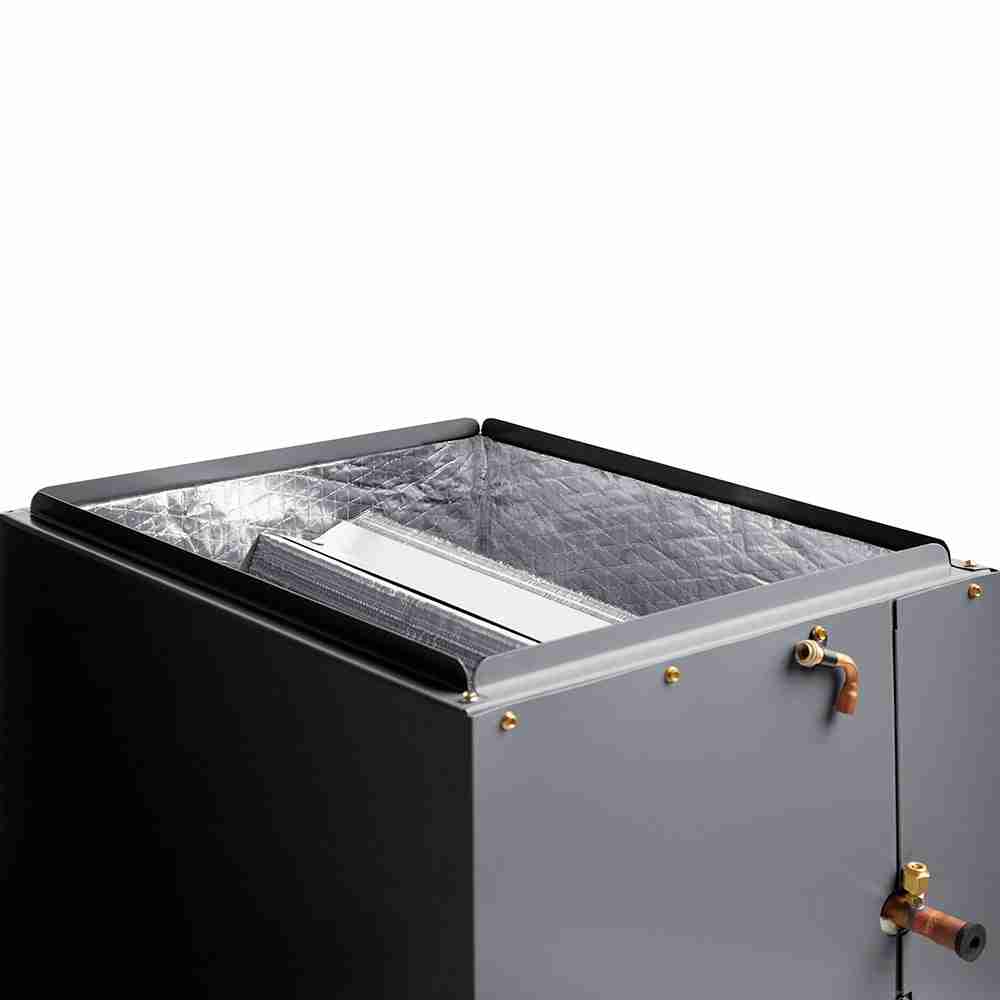

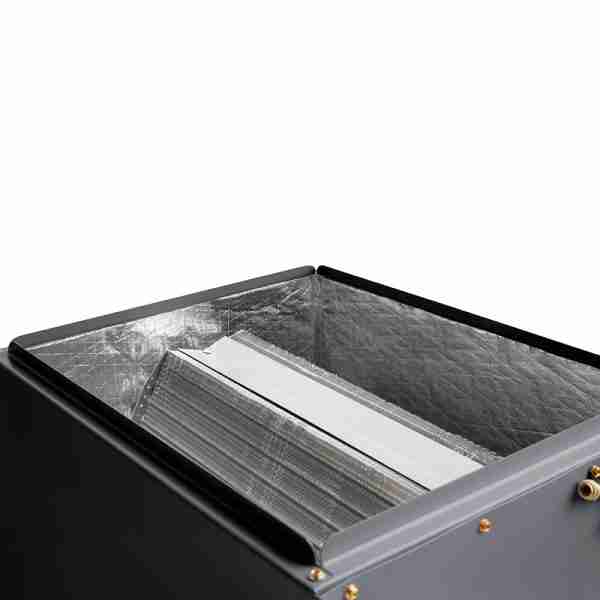

  • Foil-face insulation for easy cleaning
  • All drain pans are compatible with UV lights
  • Two dual drains on front of coil for installation flexibility of drain lines around a furnace vent and utility connections.

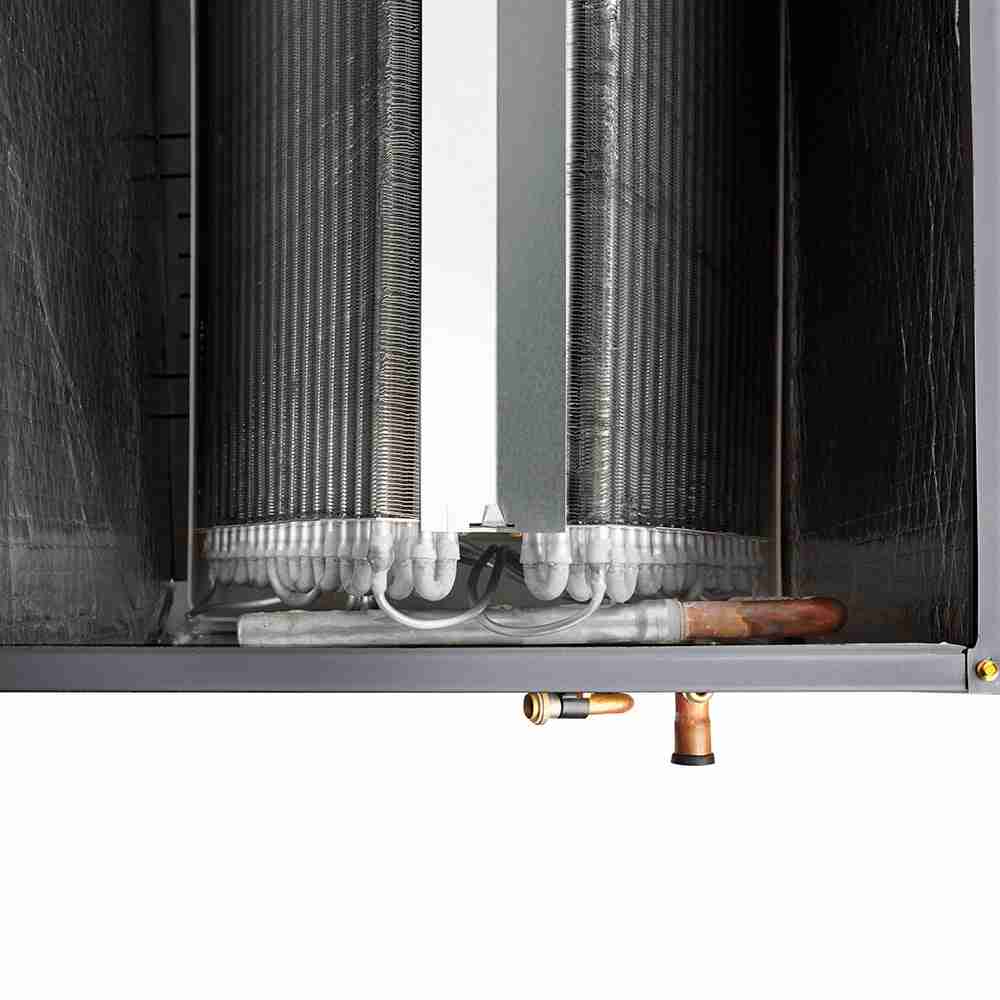

  • Superior service access to components, with tubing located at door split and foil-face insulation
  • 10-Year Parts Limited Warranty
  • Aluminum tubing, hairpins, distributors, and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Tubing located at door split for easy coil service or cleaning
  • Tightly sealed, painted steel cabinet with wall-to-wall insulation to ensure <2% air leakage

Additional Information

Weight50 lbs

Reviews

There are no reviews yet

Be the first to review “MRCOOL R410A 36,000 BTU Upflow Painted 17.5″ Evaporator Coil”

Your email address will not be published. Required fields are marked *

Overall rating*
0/5
* Rating is required
On a scale of 1-5, 5 being best, how would you rate your shopping experiance with us?*
0/5
* Rating is required
* Answer is required

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

TONNAGE3
COOLING CAPACITY36000
COLORGray
COLOR FAMILYGray
REFRIGERANT TYPER-410A
DRAIN CONNECTION SIZE3/4
LINESET INCLUDEDNo
LINE SET LENGTH15ft, 25ft, 35ft, 50ft
MAX LINESET LENGTH50ft
LINESET FITTING TYPESweat
LIQUID LINE SIZE3/8
SUCTION LINE SIZE3/4
UL RECOGNIZEDyes
UL LISTEDyes
ENERGY STAR COMPLIANTno
ENERGY STAR CERTIFIEDno
AHRI CERTIFIEDyes
REGISTERED WARRANTYRegistered 10-Year Parts Warranty
BASE WARRANTY5 Year Parts Warranty
REGISTERED PARTS WARRANTYRegistered 10-Year Parts Warranty
BASE PARTS WARRANTY5 Year Parts Warranty
CONTAINS CHEMICALSYes
CONTAINS AEROSOLYes
CONTAINS COMPRESSED GASYes
PROPOSITION 65 WARNINGYes
RESTRICTED STATESNo
NET DEPTH21
NET HEIGHT22-1/2
NET WIDTH17-1/2
NET WEIGHT50
GROSS WEIGHT50 lbs
