DIY Select 1st Gen – 12,000 BTU 115V R‑454B White Wall Mount Air Handler + Condenser

13 people are viewing this product right now.

$1,399.00

: $1,399.00

The MRCOOL DIY Select 1st Gen 12K BTU 115V R‑454B mini‑split WHITE delivers efficient heating and cooling with a white wall‑mount air handler, matching condenser, and true DIY Quick‑Connect® installation for medium‑sized rooms.

#2 in MRCOOL DIY Select 1st Gen
GTIN: 840433619512 SKU: 2563 Category: Tags: , , , , , , , , , , , , Brand:
GTIN: 840433619512
MPN: DIYS-12-HP-115A11-O
Brand: MRCOOL

Description

The MRCOOL DIY Select 1st Gen 12K BTU 115V R‑454B mini‑split WHITE System delivers efficient, quiet, and reliable heating and cooling for medium‑sized rooms and add‑on spaces. This model features a white wall‑mount air handler paired with a matching outdoor condenser, both engineered for true DIY installation using MRCOOL’s pre‑charged R‑454B Quick‑Connect® line set—no vacuum pump, gauges, or EPA certification required.

Key Features of the MRCOOL DIY Select 1st Gen 12K BTU 115V R‑454B mini‑split WHITE

  • 12,000 BTU Capacity Perfect for medium rooms up to ~500 sq ft, including living rooms, master bedrooms, offices, and studio spaces.
  • 115V Power Compatibility Runs on a standard household circuit, making installation flexible and accessible.
  • R‑454B Refrigerant Low‑GWP, next‑generation refrigerant designed for improved environmental performance and future regulatory compliance.
  • DIY Quick‑Connect® Installation Pre‑charged line sets allow homeowners to install the system without specialized tools or professional refrigerant handling.
  • Inverter Compressor Technology Maintains consistent comfort while reducing energy consumption and noise.
  • Smart Control Ready Works with the MRCOOL® SmartHVAC app for remote control, scheduling, and system monitoring.
  • Quiet Operation The indoor air handler and outdoor condenser operate at low sound levels for peaceful comfort.
  • Clean White Wall‑Mount Design Modern, neutral appearance that blends seamlessly into any room.

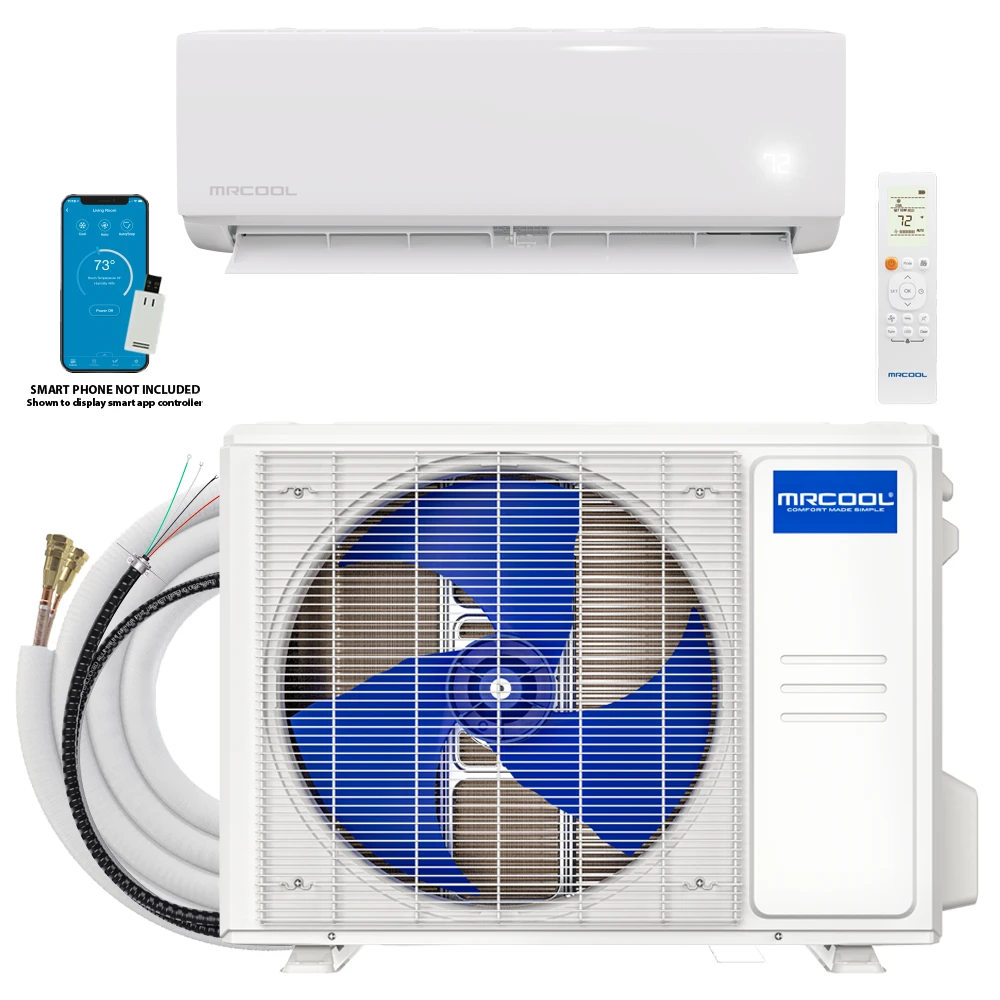

What’s Included

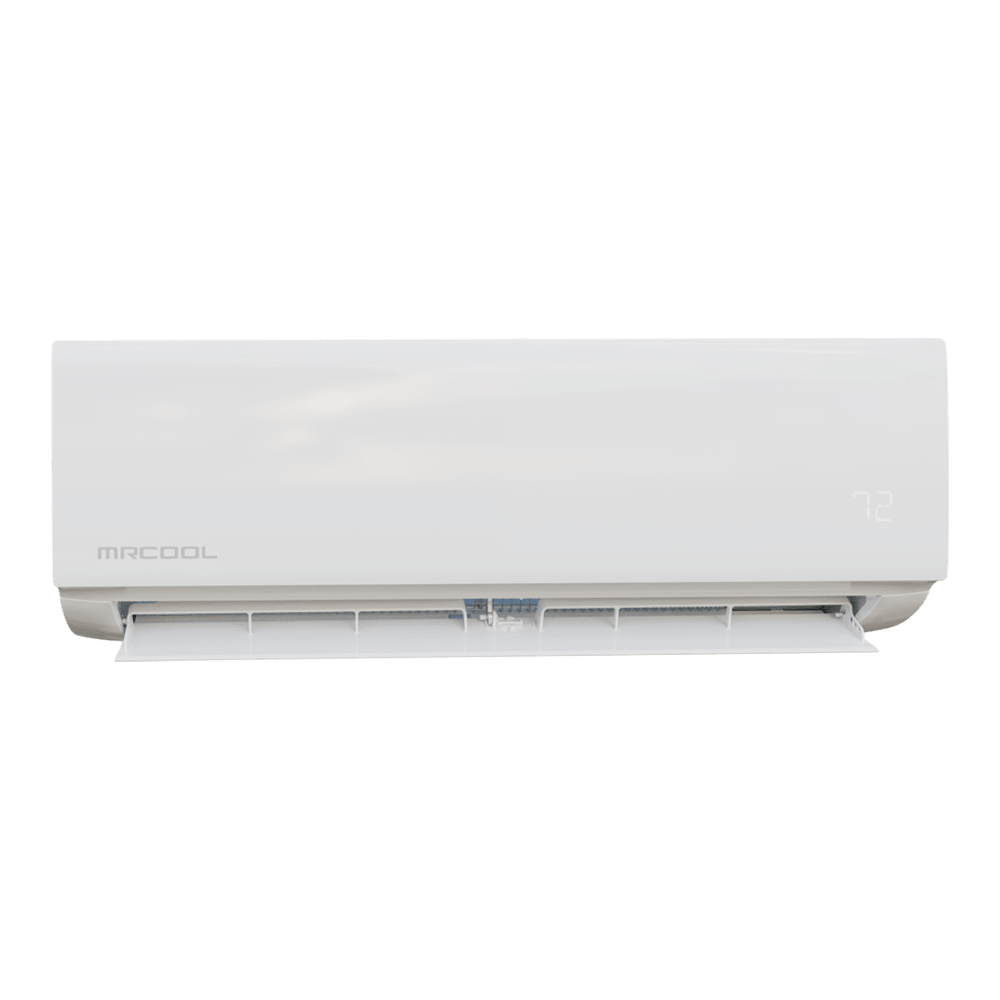

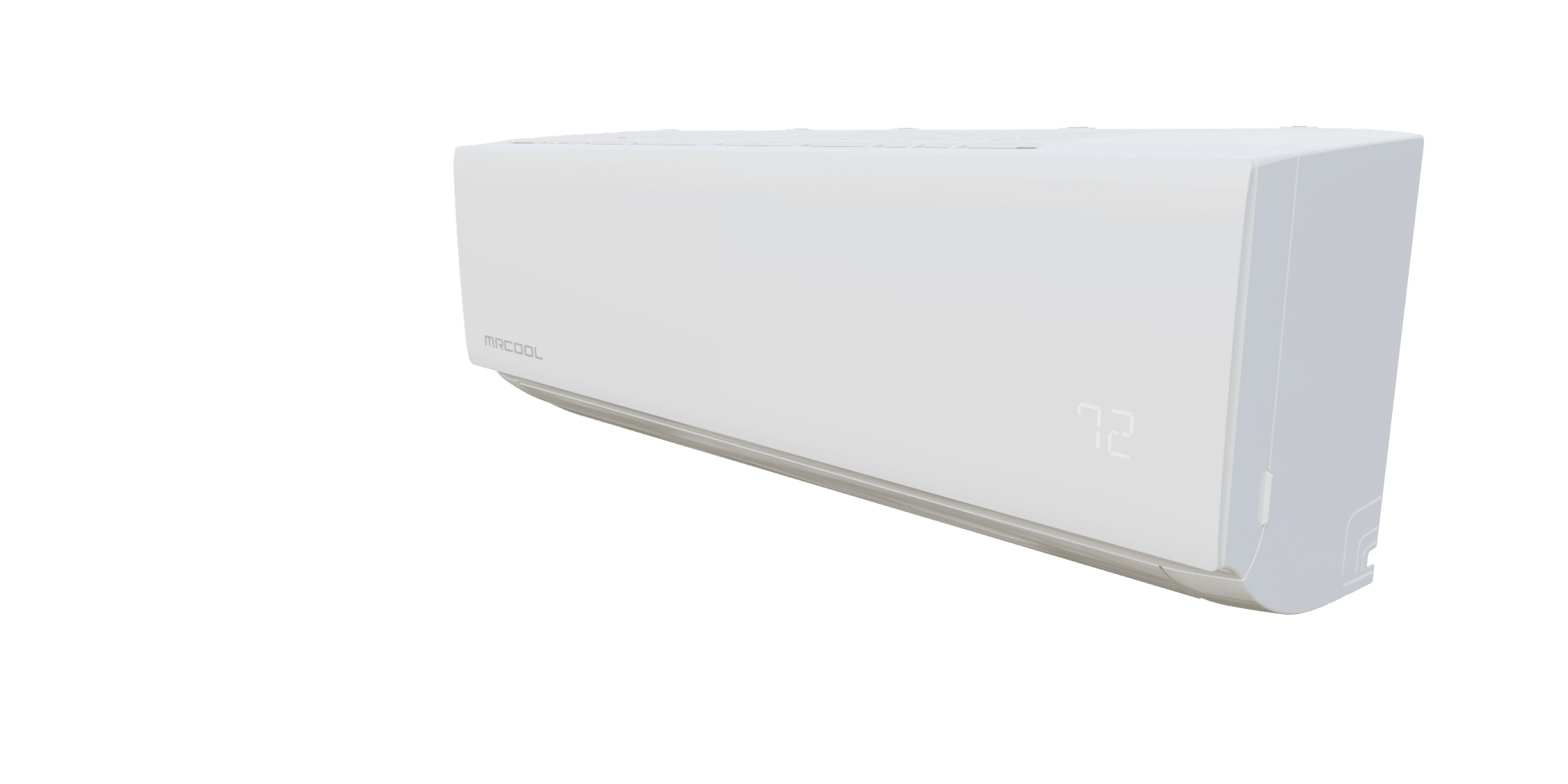

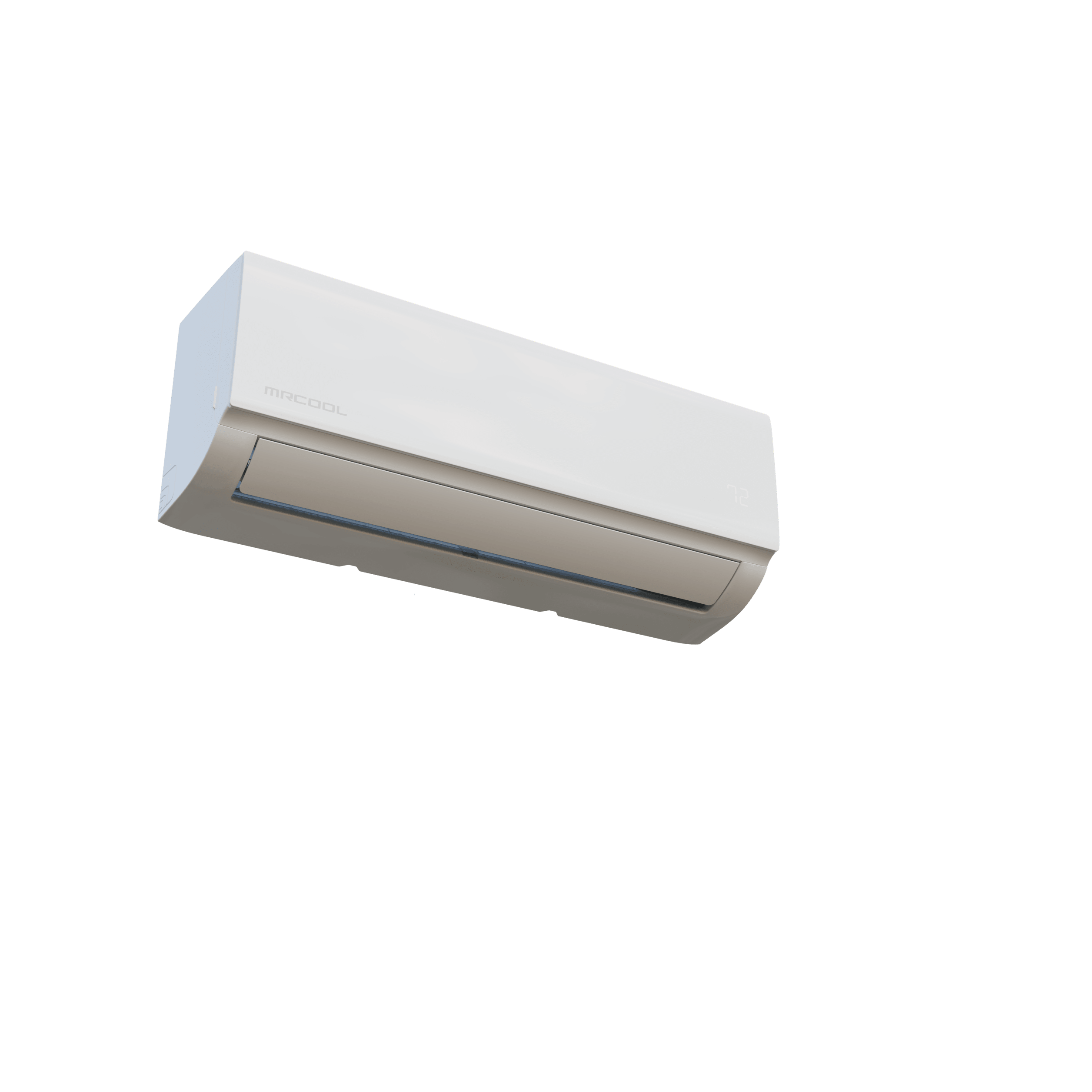

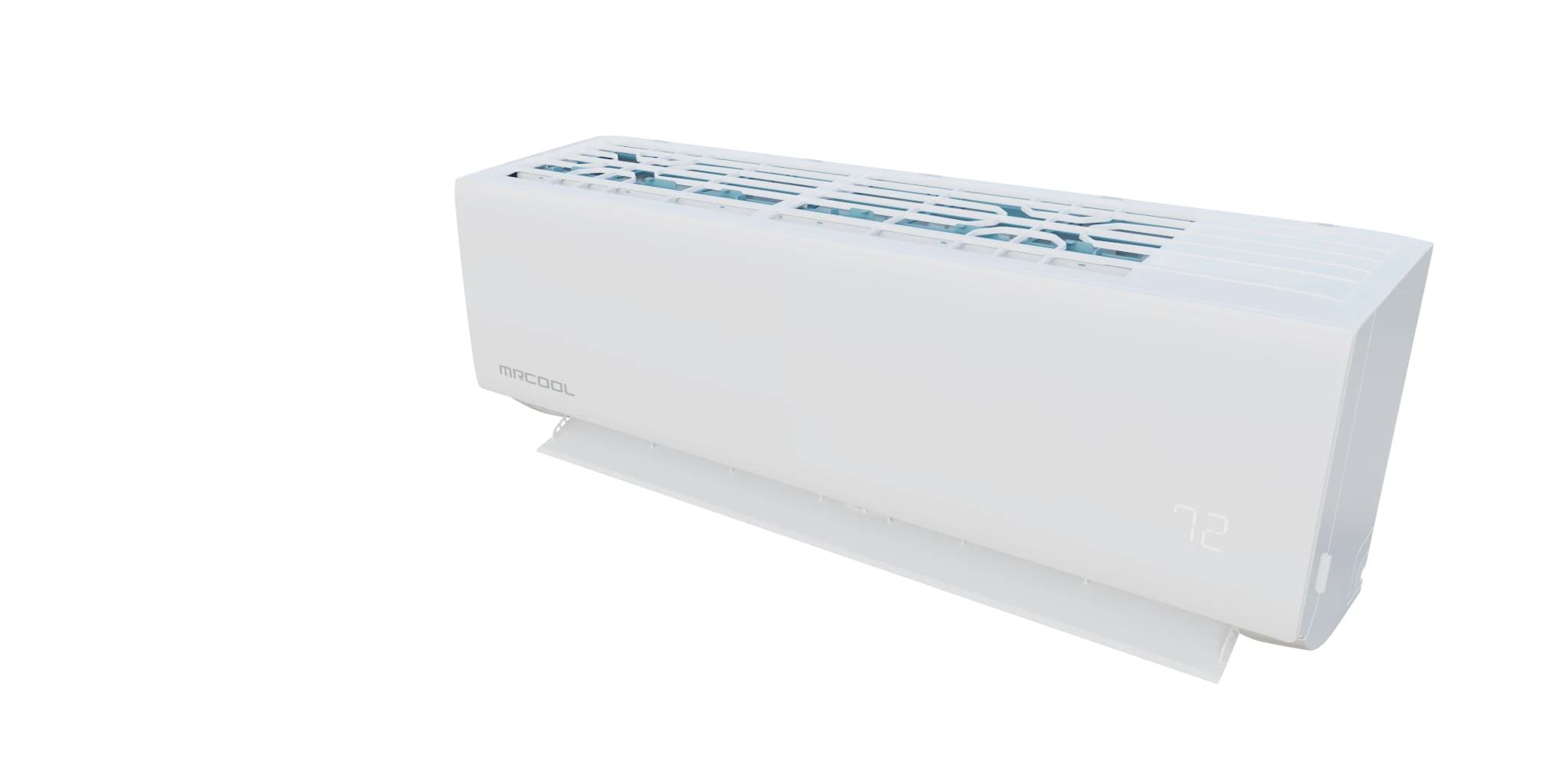

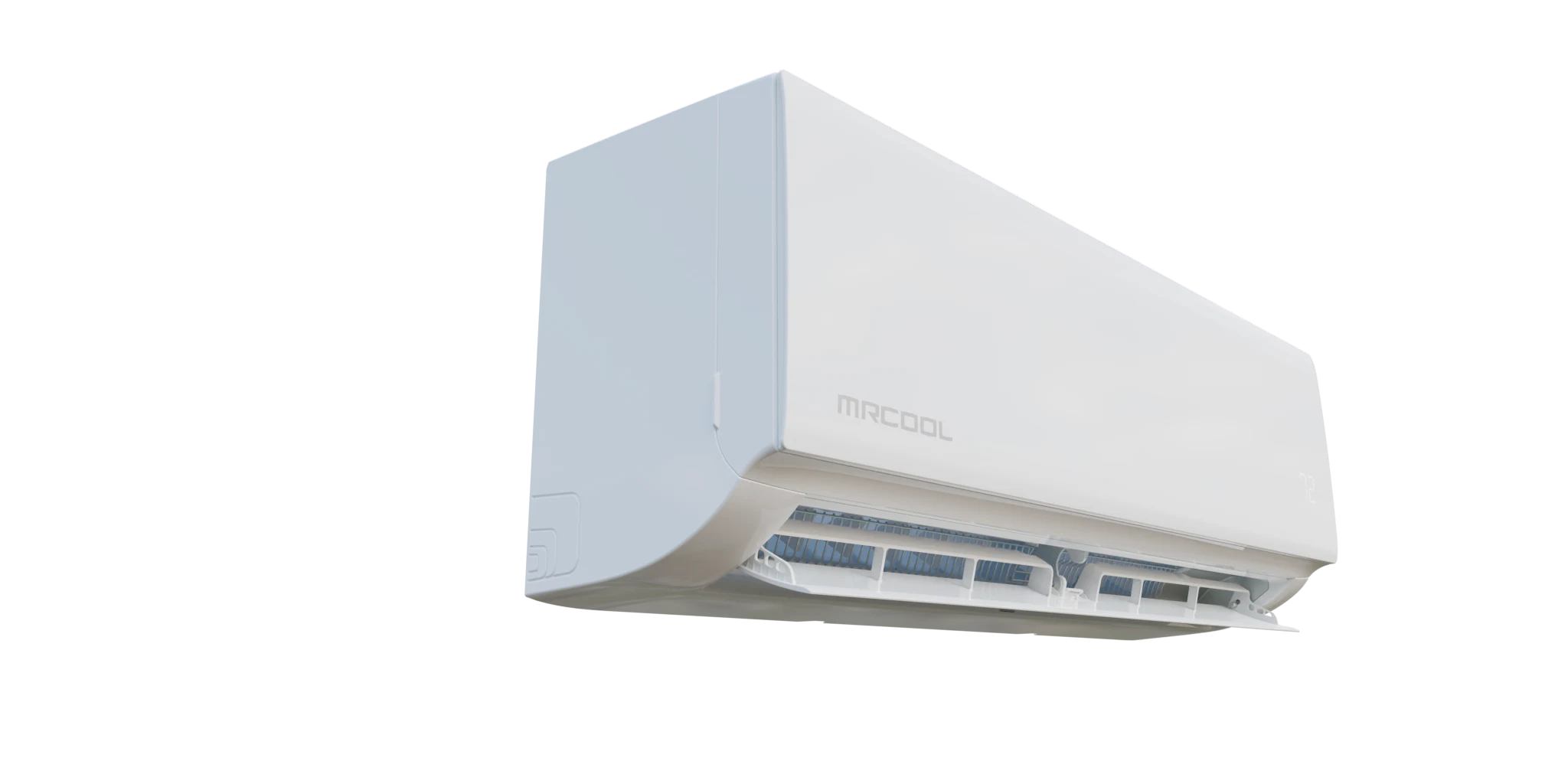

  • 12K BTU White Wall‑Mount Air Handler

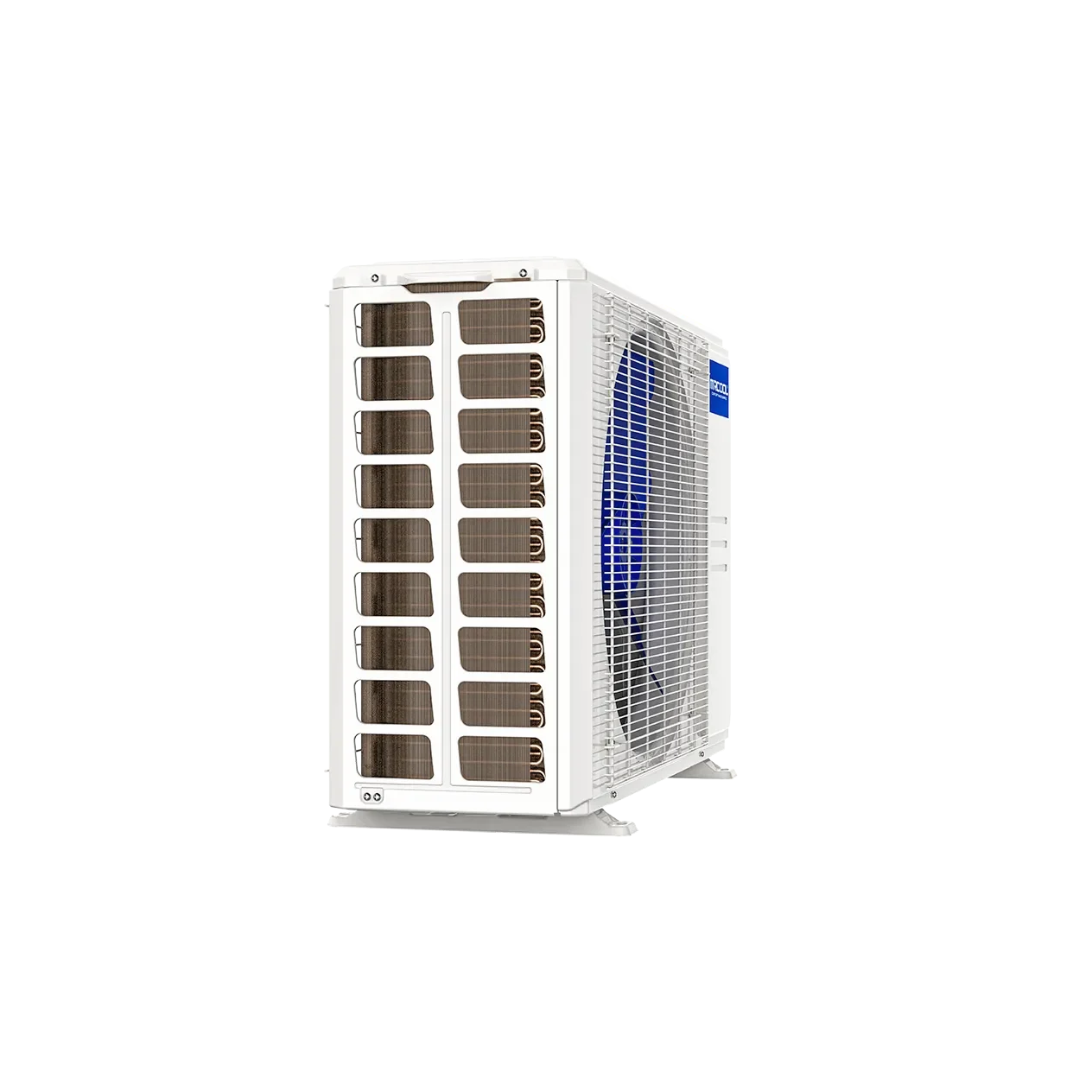

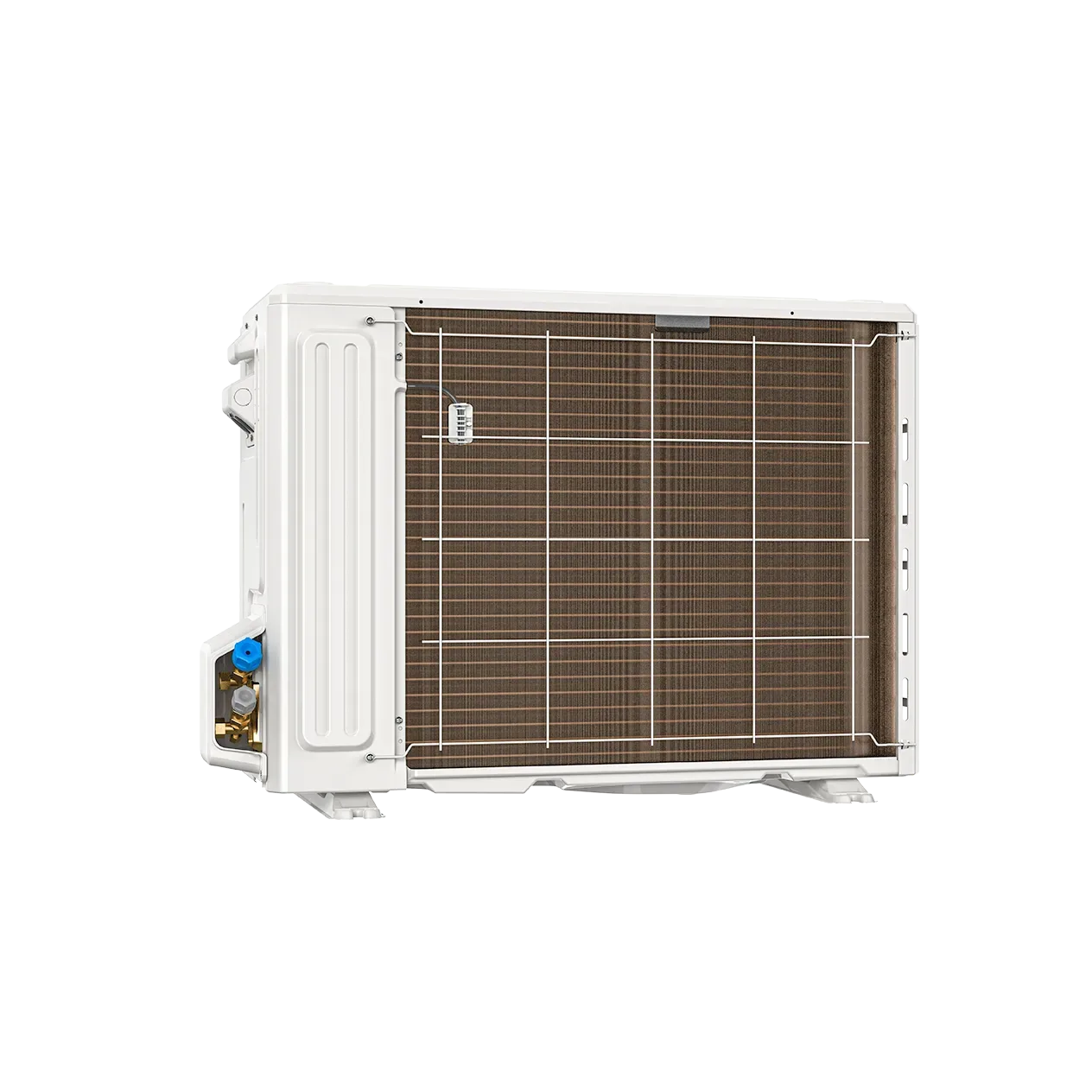

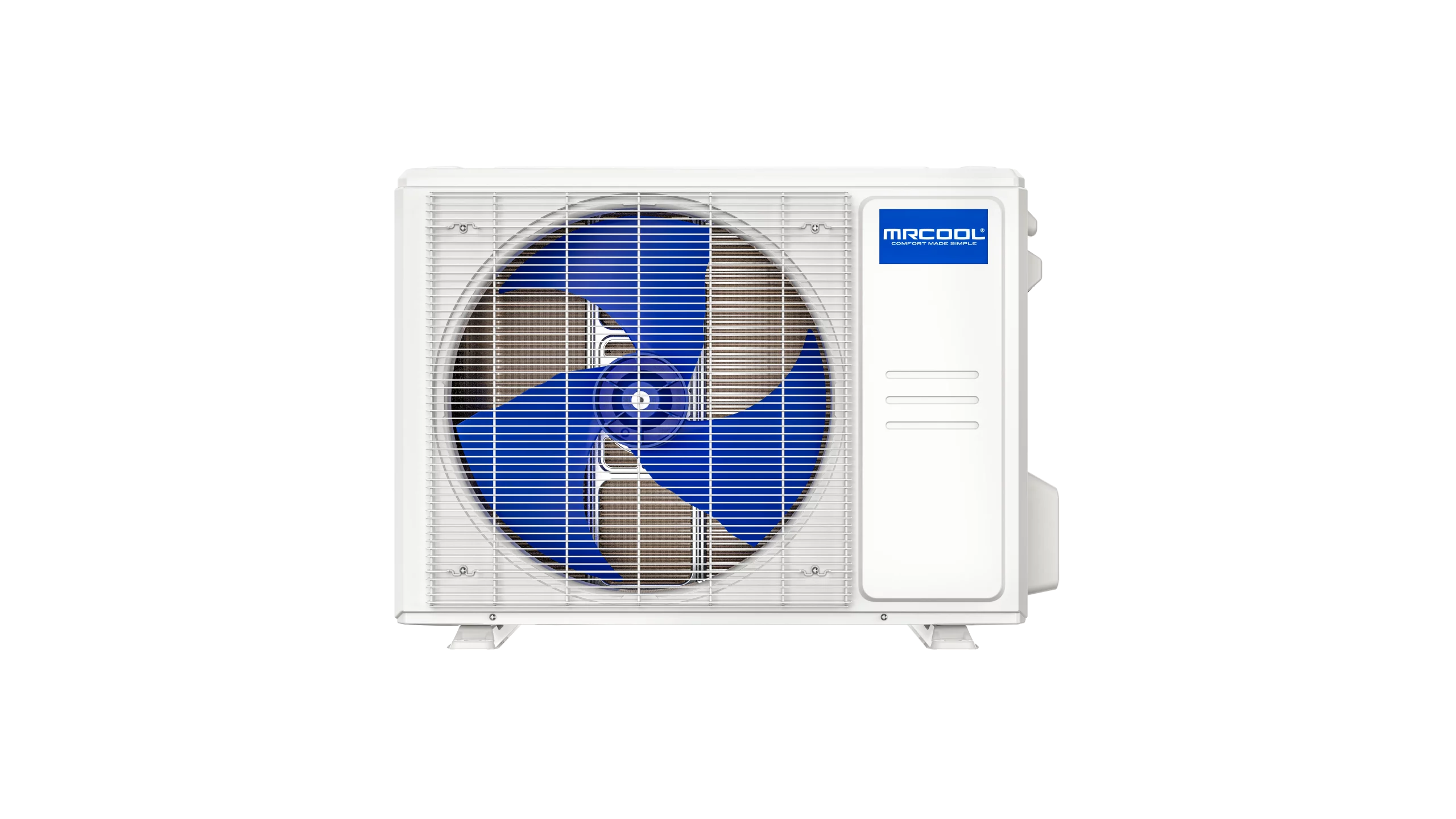

  • 12K BTU Outdoor Condenser
  • Pre‑charged R‑454B Quick‑Connect® line set
  • Communication cable
  • Wall sleeve & installation hardware
  • Remote control

Ideal For

  • Medium bedrooms
  • Living rooms
  • Home offices
  • Studio apartments
  • Bonus rooms and add‑on spaces
  • Workshops or insulated garages

Why Choose the DIY Select Series?

The MRCOOL DIY Select 1st Gen 12K BTU 115V R‑454B mini‑split WHITE line offers a streamlined, cost‑effective alternative to the flagship DIY series while preserving the features homeowners value most: quiet comfort, inverter efficiency, smart control capability, and true DIY installation. With modern R‑454B refrigerant and a clean white finish, this 12K BTU system is a dependable solution for year‑round comfort.

Additional Information

BASE COMPRESSOR WARRANTY

Base Labor Warranty

BASE PARTS WARRANTY

ENERGY STAR CERTIFIED

EQUIPMENT TYPE

MAX COVERAGE AREA

Product Series

TONNAGE

UNIT TYPE

VOLTAGE (V)

115v

Reviews

There are no reviews yet

Be the first to review “DIY Select 1st Gen – 12,000 BTU 115V R‑454B White Wall Mount Air Handler + Condenser”

Proposition 65 Warning California Residents Only

⚠ California Proposition 65 Warning This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. These warnings are provided in accordance with California law to help consumers make informed decisions. For more information, visit www.P65Warnings.ca.gov (p65warnings.ca.gov in Bing).

MRCOOL Select Warranty

mc-diys-5-wr-en

Q & A

Ask a question
DIY Select 1st Gen – 12,000 BTU 115V R‑454B White Wall Mount Air Handler + Condenser DIY Select 1st Gen – 12,000 BTU 115V R‑454B White Wall Mount Air Handler + Condenser
Your question
* Question is required
Name
* Name is required
* Please tick the checkbox to proceed
There are no questions yet

Indoor:

TONNAGE 1
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
COLOR White
MAX COVERAGE AREA 550 sq. ft.
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
DECIBEL RATING LOW (DBA) 17.5
DECIBEL RATING HIGH (DBA) 44.5
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
BLOWER MOTOR TYPE DC
BLOWER MOTOR RPM 850/750/450
FILTER TYPE Reusable
ADJUSTABLE THERMOSTAT Yes
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
BASE WARRANTY 1 Year Parts
BASE PARTS WARRANTY 1 Year Parts
BASE REMOTE WARRANTY 1 Year
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.87
NET HEIGHT (IN) 11.61
NET WIDTH (IN) 31.57
NET WEIGHT (LBS) 24.91
GROSS DEPTH (IN) 13.97
GROSS HEIGHT (IN) 16.34
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 35.71

Outdoor:

SEER2 17.5
EER2 8.5
HSPF2-4 9
HSPF2-5 6.8
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 19.5
COLOR White
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 21.52
DECIBEL RATING (DBA) 54
INVERTER Yes
LINESET INCLUDED Yes
LINE SET LENGTH 11.5 ft.
MAX LINESET LENGTH (FT) 75 ft.
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
CONDENSER FAN MOTOR TYPE DC
CONDENSER FAN MOTOR RPM 800/700/600
METERING DEVICE EEV
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
BASE WARRANTY 1 Year Parts, 2 Years Compressor
BASE PARTS WARRANTY 1 Year Parts
BASE COMPRESSOR WARRANTY 2 Years Compressor
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 10.63
NET HEIGHT (IN) 19.49
NET WIDTH (IN) 28.35
NET WEIGHT (LBS) 54.89
GROSS DEPTH (IN) 16.54
GROSS HEIGHT (IN) 27.36
GROSS WIDTH (IN) 36.22
GROSS WEIGHT (LBS) 67.24
